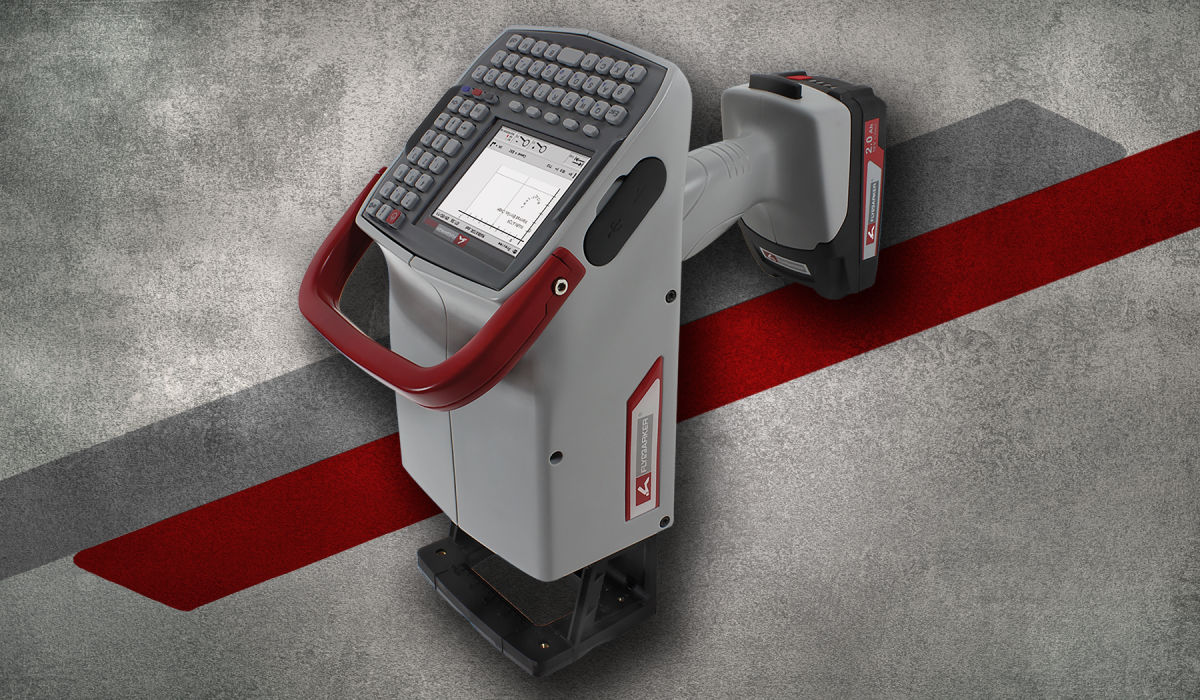

FlyMarker mini 65/30

Data Matrix CodeElectro-magneticHandheld

Mark like a professional!

Compact, battery-operated and therefore 100% mobile hand-held marker with an unbeatable price/performance ratio

Product details

Our bestseller among the battery operated hand-held marking systems. With the FlyMarker mini 65/30 hand injuries caused by classic hand stamps can be eliminated. It has never been easier to create markings on almost all materials from plastic up to hardened steel (63HRC). The compact battery operated hand marker convinces with its functionality and compact design as well as its unique price-performance ratio.

LIGHT

  • The weight of the battery-powered needle embossing machine is only 2.4 kg (incl. battery)
  • Ergonomic device design for effortless 1- or 2-hand operation
  • Housing made of unbreakable and glass fiber reinforced plastic

MOBILE

  • ALL-IN-ONE system with integrated control unit and keyboard with separate numeric keypad

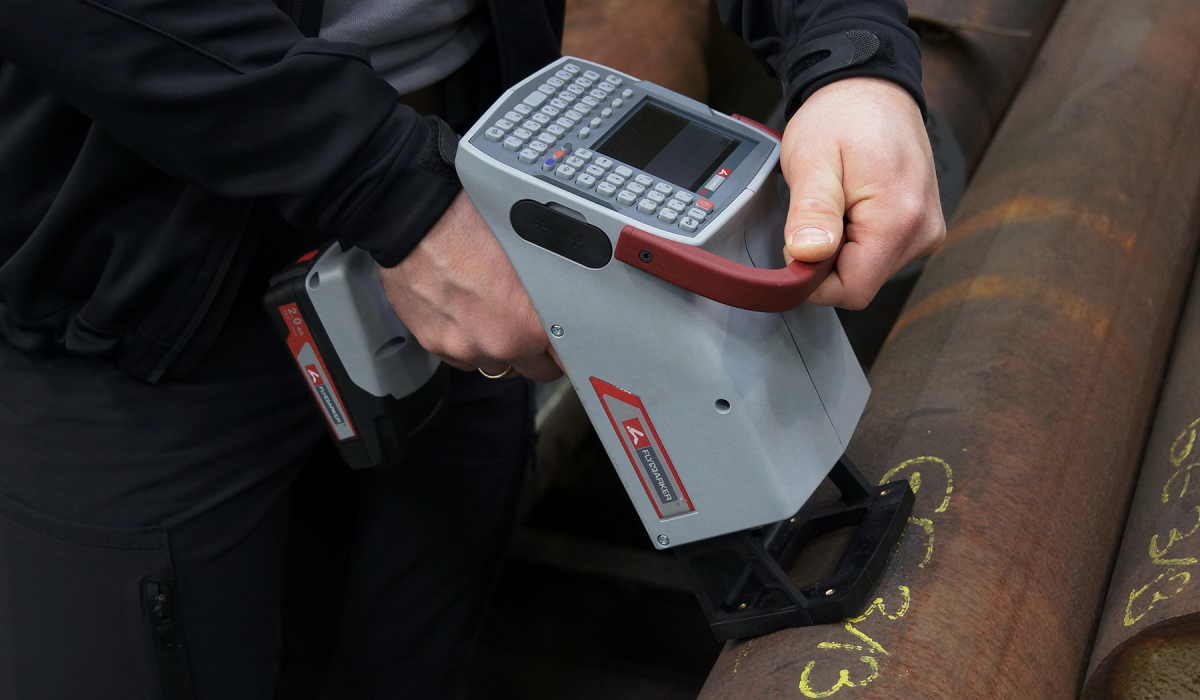

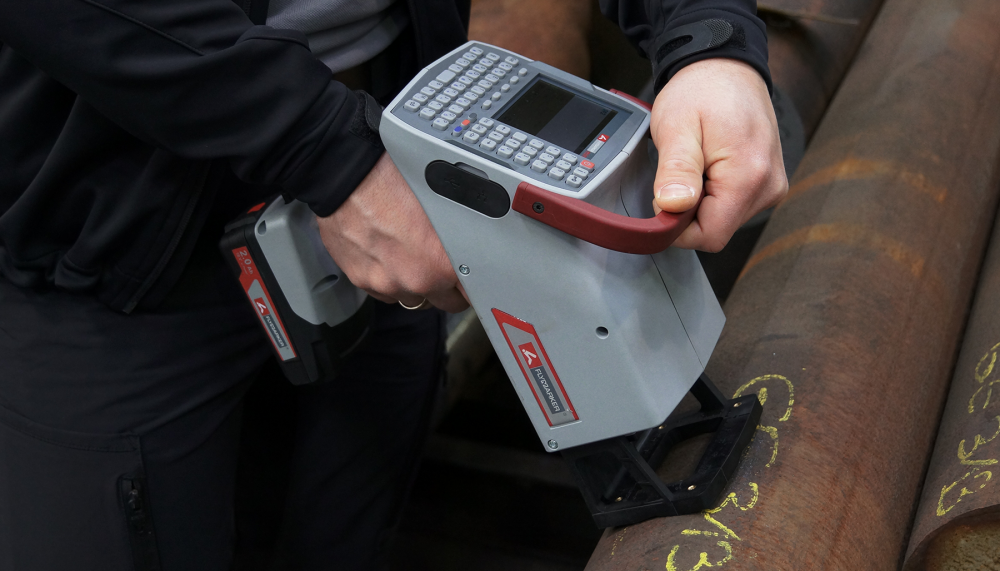

  • Without annoying power and compressed air cables, it can be used directly on site for heavy, unmovable and voluminous workpieces
  • Self-sufficient working with 2 powerful 18V lithium-ion batteries (standard scope of delivery)

INNOVATIVE

  • Adjustable marking strengths for visible markings even after subsequent treatment
  • Protected interfaces on the device for data transmission and optional accessories
  • High marking quality thanks to stable and durable mechanics guarantees permanent and forgery-proof marking
  • High-resolution LC display with user-friendly and intuitive operating software

Comparison chart of all FlyMarker mini products



Discover our FlyMarker mini 65/30 in 3D

Marking area (x/y): 65 x 30 mm

Available character heights: 1,0 to 29,9 mm

Fonts: Medium spaced lettering similar to DIN 1451 in single dot characters (size 5 x 7 or 9 x 13)

Drive of the marking pin: Electromagnetic

Available characters: Numbers 0 - 9, capital letters / small letters A - Z; a-zvarious punctuation marks. , / etc.

Interface: USB-A, USB-B, Ethernet

Height tolerance compensation: Up to max. 5 mm (constant marking depth also on uneven surfaces)

Weight: 2,4 kg incl. battery

Battery capacity: 2,0 Ah 18V (Lithium-Ion) / 5,2 Ah 18V (optional)

Marking force: 30 possible force settings(constant impact performance through the complete battery runtime)
