FlyMarker mini 120/45 plus

Data Matrix CodeElectro-magneticHandheld

When size matters

Large marking field is particularly suitable for long marking input. Battery-operated. Completely mobile working thanks to battery operation.

Product details

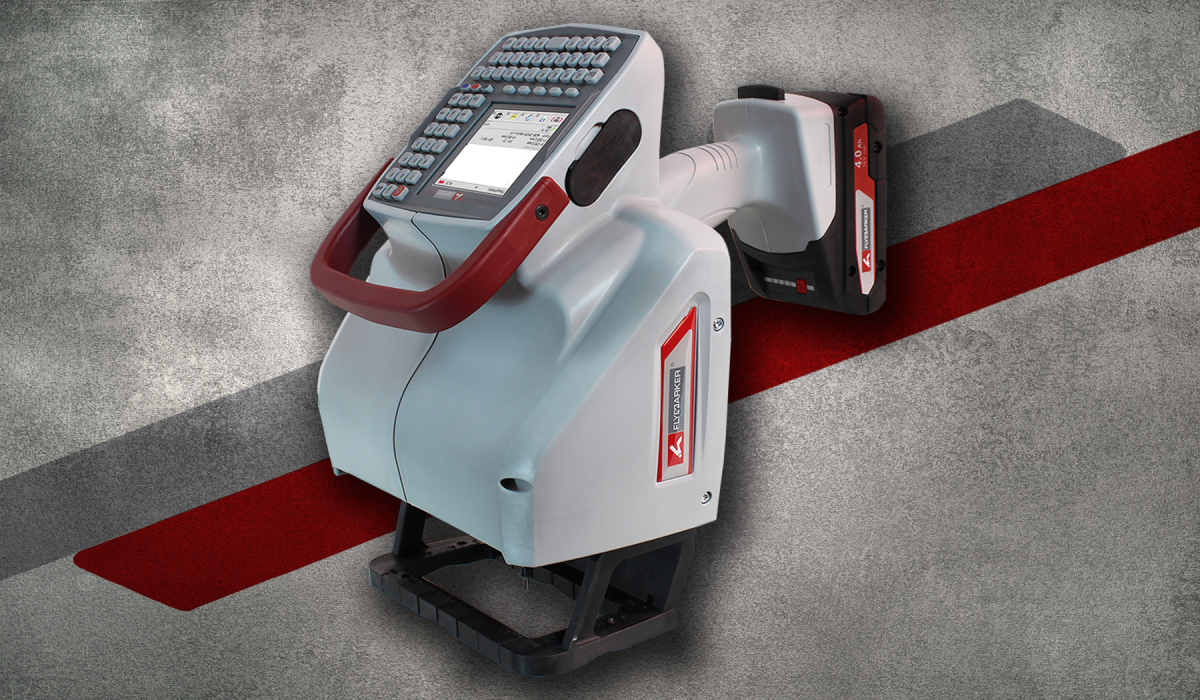

The battery-powered hand-held marking system FlyMarker mini 120/45 plus convinces both by its low weight of only 3,2 kg (incl. battery) and its compact design, as well as by a very attractive price/performance ratio. Long battery life, a large marking field 120x45mm and an integrated keyboard are further important features.

FLEXIBLE

  • 18V lithium-ion battery technology
  • 100% mobile marking of heavy, immobile and voluminous workpieces directly on site
  • Removable handle for better access to bulky components
  • Modular system: Numerous accessories and variants for many applications

STRONG

  • Extra-strong magnet for deep markings (optional, easily exchangeable)
  • High-quality guide system for maximum stability
  • Double linear guides in X and Y direction for warp-free, multi-line marking without loss of quality
  • High rigidity of the mechanics due to robust basic carrier with integrated positioning angle

DURABLE

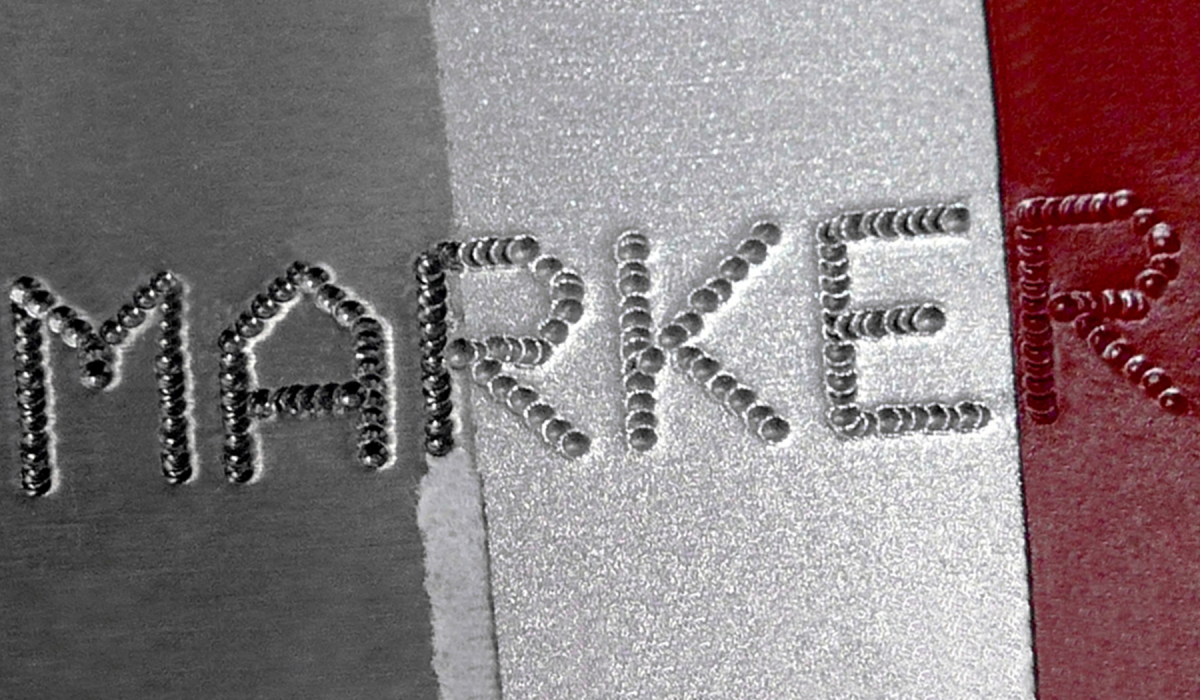

  • Markings on almost all materials from plastic to hardened steel (63HRC)
  • Individual company logos, test marks or Data Matrix codes can be marked optionally
  • Thanks to integrated prisms fences, marking of round parts is simple and easy

Comparison chart of all FlyMarker mini products



Discover our FlyMarker mini 120/45 plus in 3D

Marking area (x/y): 120 x 45 mm

Available character heights: 1,0 to 44,9 mm

Fonts: Medium spaced lettering similar to DIN 1451 in single dot characters (size 5 x 7 or 9 x 13)

Drive of the marking pin: Electromagnetic

Available characters: Numbers 0 - 9, capital letters / small letters A - Z; a - z various punctuation marks. , / etc.

Interface: USB-A, USB-B, Ethernet

Height tolerance compensation: Up to max. 5 mm (constant marking depth also on uneven surfaces)

Weight: 3,2 kg incl. battery

Battery capacity: 4,0 Ah 18V (Lithium-Ion) / 8,0 Ah 18V (optional)

Marking force: 30 possible force settings(constant impact performance through the complete battery runtime)
